SPECIFICATIONS

Model DD3CBT

Features:
1. lock/unlock/remote start by remote key or APP.
2. Automatic engine lock (the engine cannot be started after locking).
3. Push one button start / stop engine.
4. Remot open back box by key or APP (Requires the car itself to have a controllable circuit).
5. Sound and light alarm or silent anti-theft.
6. APP PKE keyless comfort entry function, automatically unlock the car 1.5-3 meters away from the car, automatically lock the door 3-5 meters away from the car.
7. Mobile APP keyless entry can be temporarily disabled.
8. WPreheating start, you can choose between a gasoline car or a diesel car using the switch.
9. Automatically lock the door by stepping on the foot brake after starting, and automatically unlock when the flame is turned off
10. Blue LED Alarm light prompt
11. Emergency reset.
12. Anti-theft alarm function (Illegal door opening or hit the brakes to alarm).
13. You can disable the remote start function via the switch.

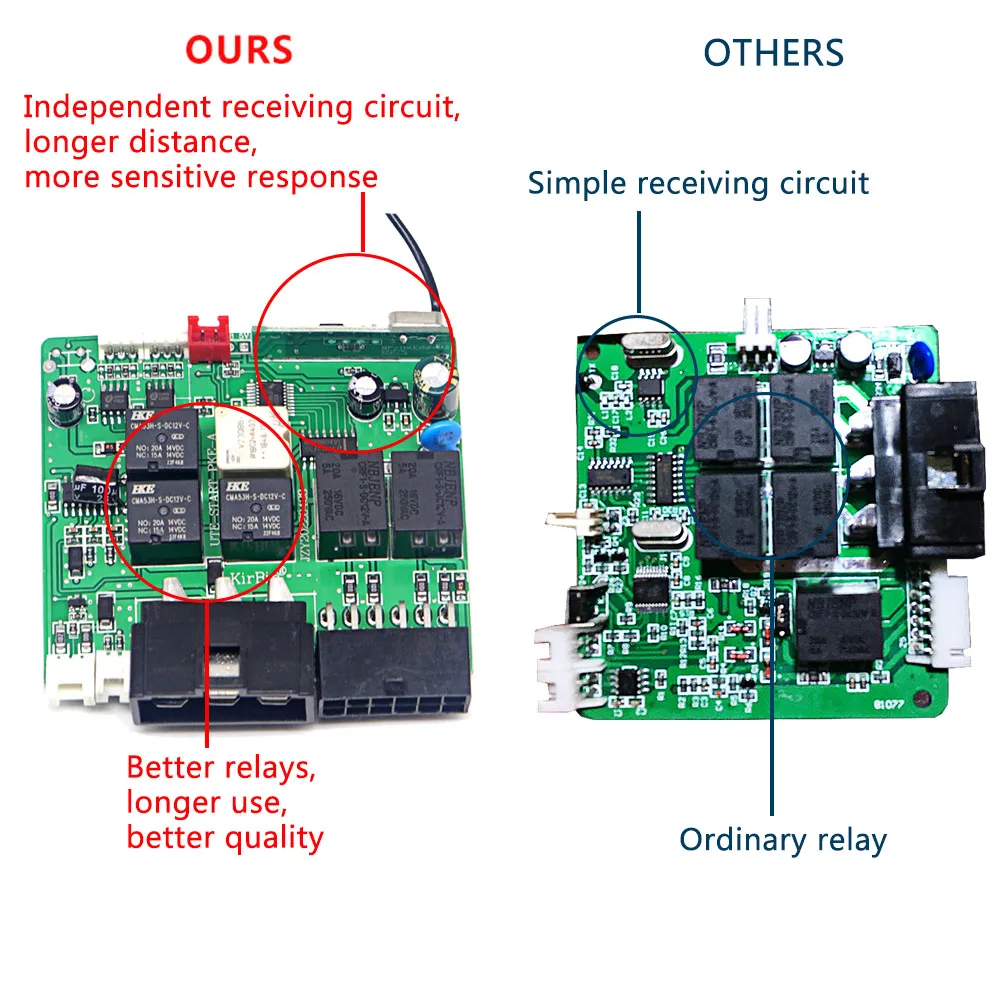

14. Using high-quality relays to output control signals, the system is more stable and reliable.

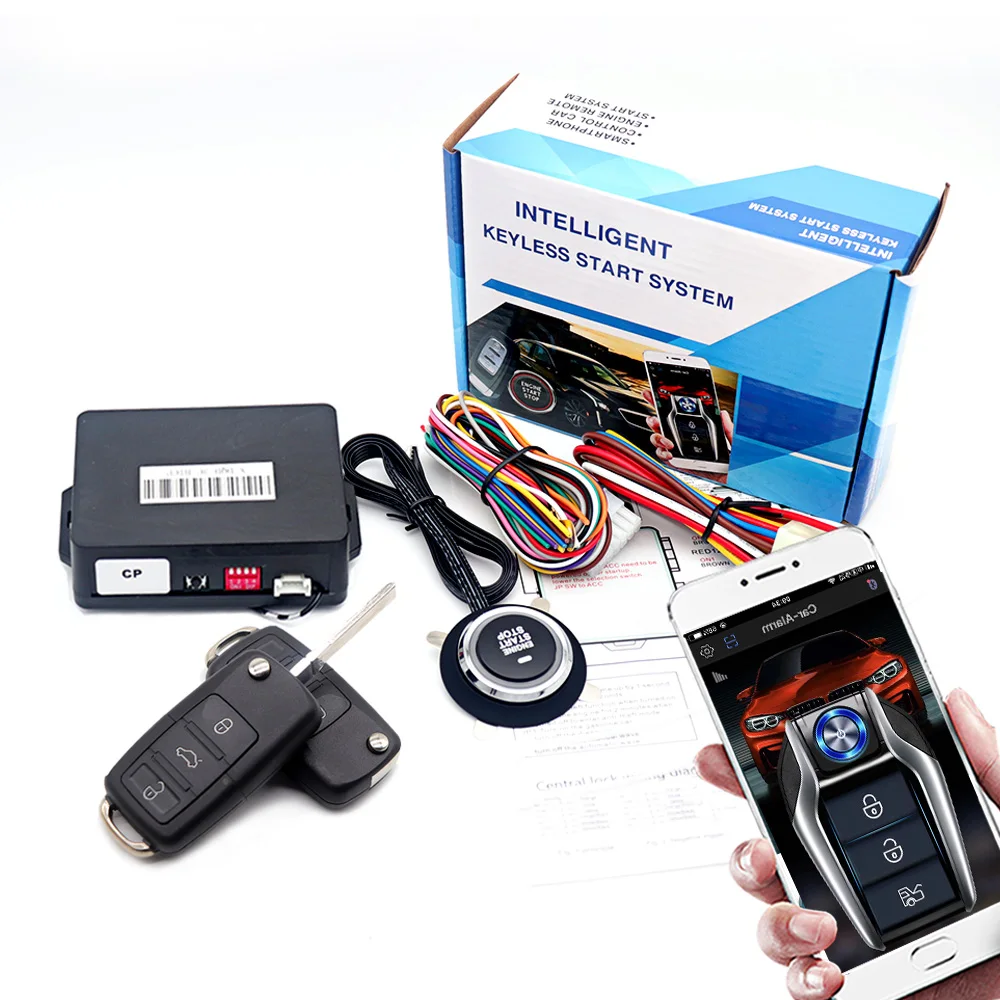

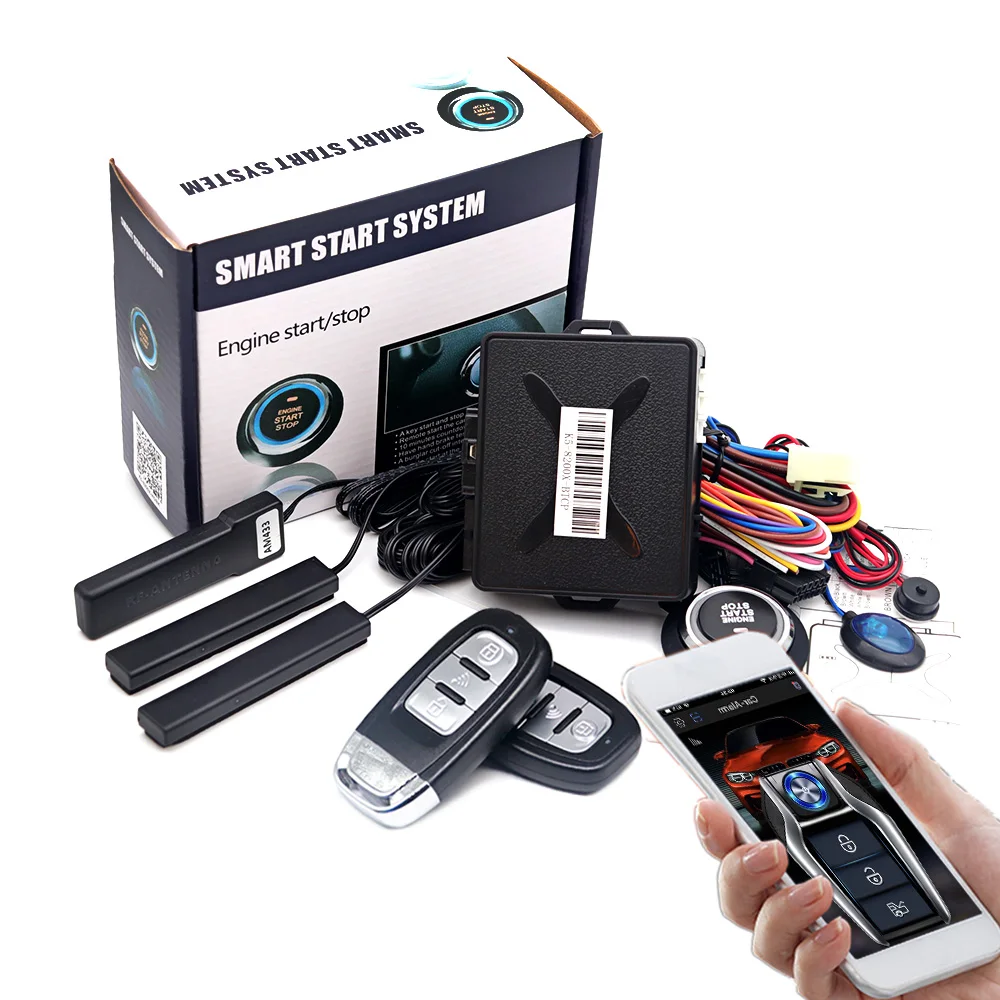

Packing List:
2* remote keys
1* Ignition and alarm module
2* Install wiring harness
1* Start-stop button
1* Emergency reset button
1* The LED light
1* Product manual

Model K5-9100DX

Features:
1. lock/unlock/remote start by remote key or APP.
2. Automatic engine lock (the engine cannot be started after locking).
3. Push one button start / stop engine.
4. Remot open back box by key or APP (Requires the car itself to have a controllable circuit).
5. Sound and light alarm or silent anti-theft.
6. APP PKE keyless comfort entry function, automatically unlock the car 1.5-3 meters away from the car, automatically lock the door 3-5 meters away from the car.
7. Mobile APP keyless entry can be temporarily disabled.
8. Warm up for 3 seconds at starting (for diesel cars).
9. Automatically lock the door by stepping on the foot brake after starting, and automatically unlock when the flame is turned off
10. Blue LED Alarm light prompt
11. Emergency reset.
12. Anti-theft alarm function (Illegal door opening or hit the brakes to alarm).
13. Anti-theft power off (after the system is locked, the fuel and electricity of the car itself is cut off, even if the key of the car itself is used, the engine cannot be started).
14. Using high-quality relays to output control signals, the system is more stable and reliable.

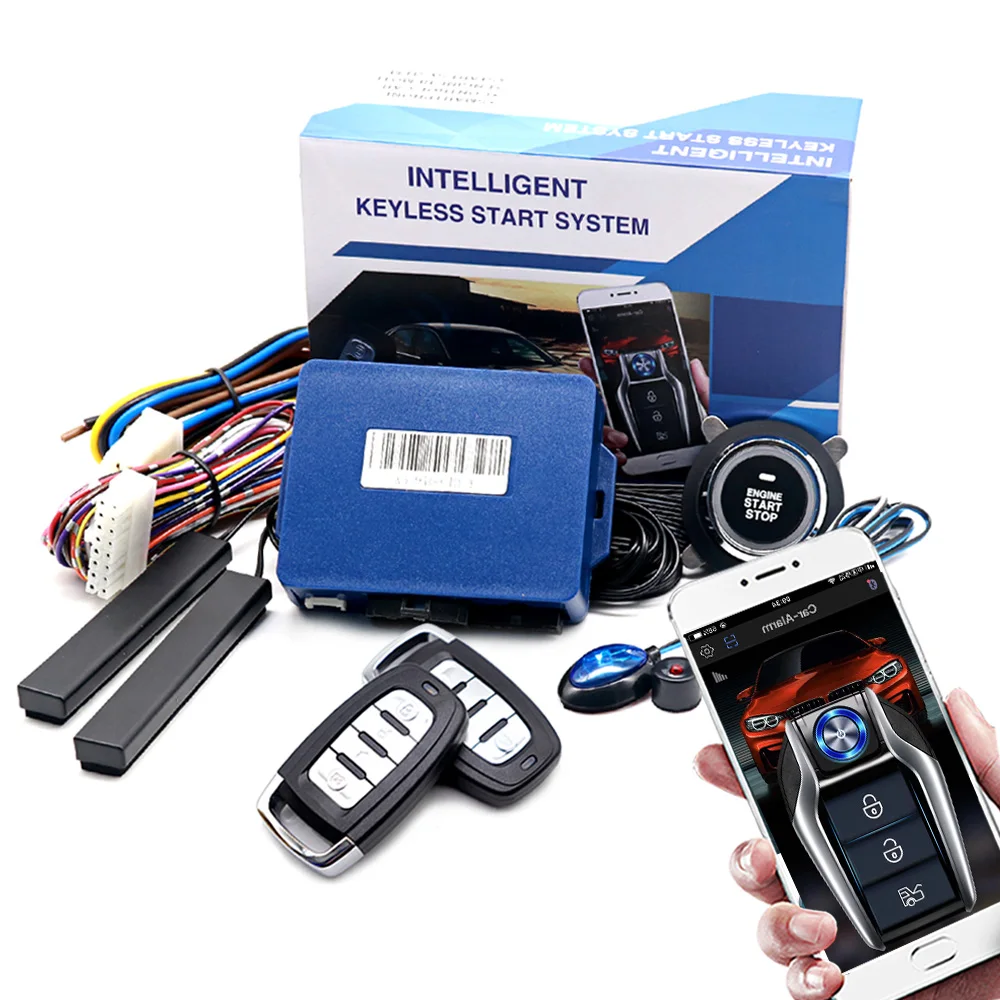

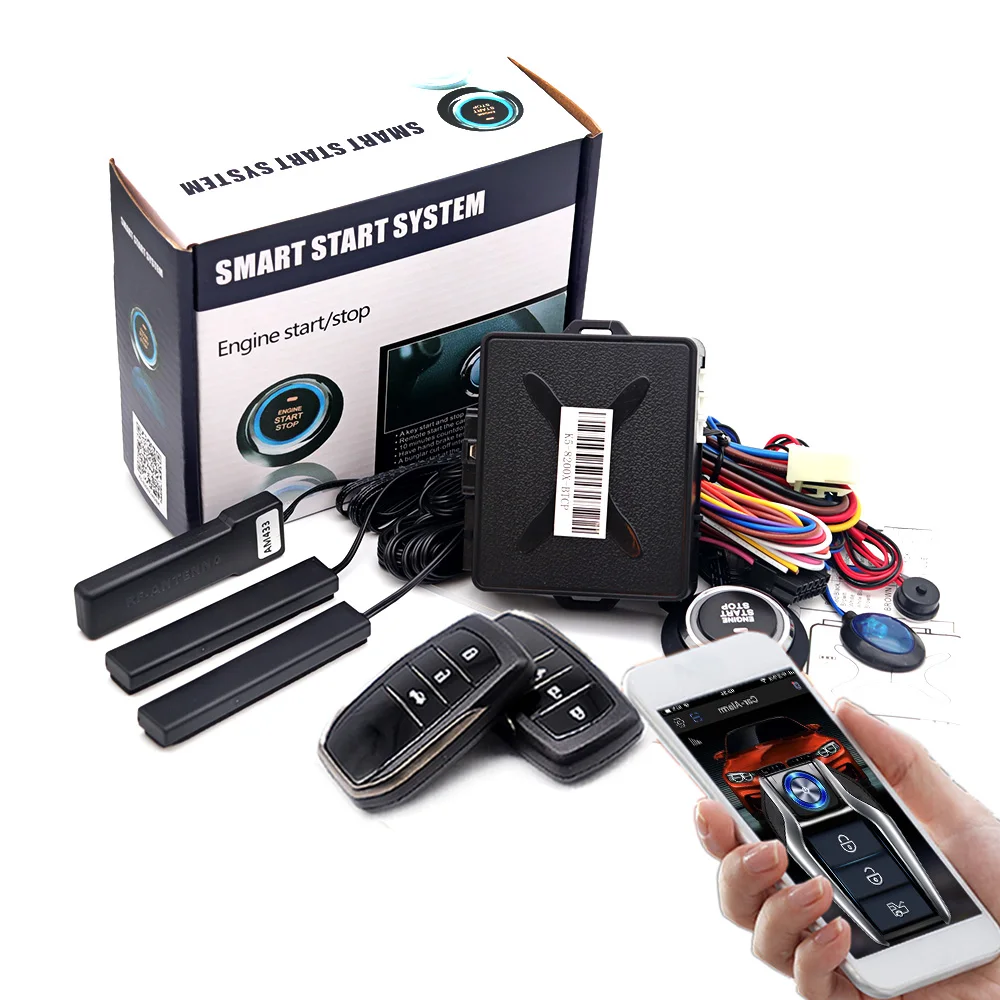

Packing List:
2* remote keys
1* Ignition and alarm module
2* Install wiring harness
1* Start-stop button
2* PKE Induction Antenna
1* Emergency reset button
1* The LED light
1* Product manual

Model K5-8200X (no APP)

Features:
1. lock/unlock/remote start by remote key.
2. Automatic engine lock (the engine cannot be started after locking).
3. Push one button start / stop engine.
4. Remot open back box by key (Requires the car itself to have a controllable circuit).
5. Sound and light alarm or silent anti-theft.
6. PKE keyless comfort entry function, automatically unlock the car 1.5-3 meters away from the car, automatically lock the door 3-5 meters away from the car.
7. PKE keyless entry can be temporarily disabled.
8. Warm up for 3 seconds at starting (for diesel cars).
9. Automatically lock the door by stepping on the foot brake after starting, and automatically unlock when the flame is turned off
10. Blue LED Alarm light prompt
11. Emergency reset.
12. Anti-theft alarm function (Illegal door opening or hit the brakes to alarm).
13. An independent external high-frequency receiving antenna. Compared to the traditional 'small tail' antenna, the remote control with an external antenna has a longer range and is more stable.
14. Using high-quality relays to output control signals, the system is more stable and reliable.

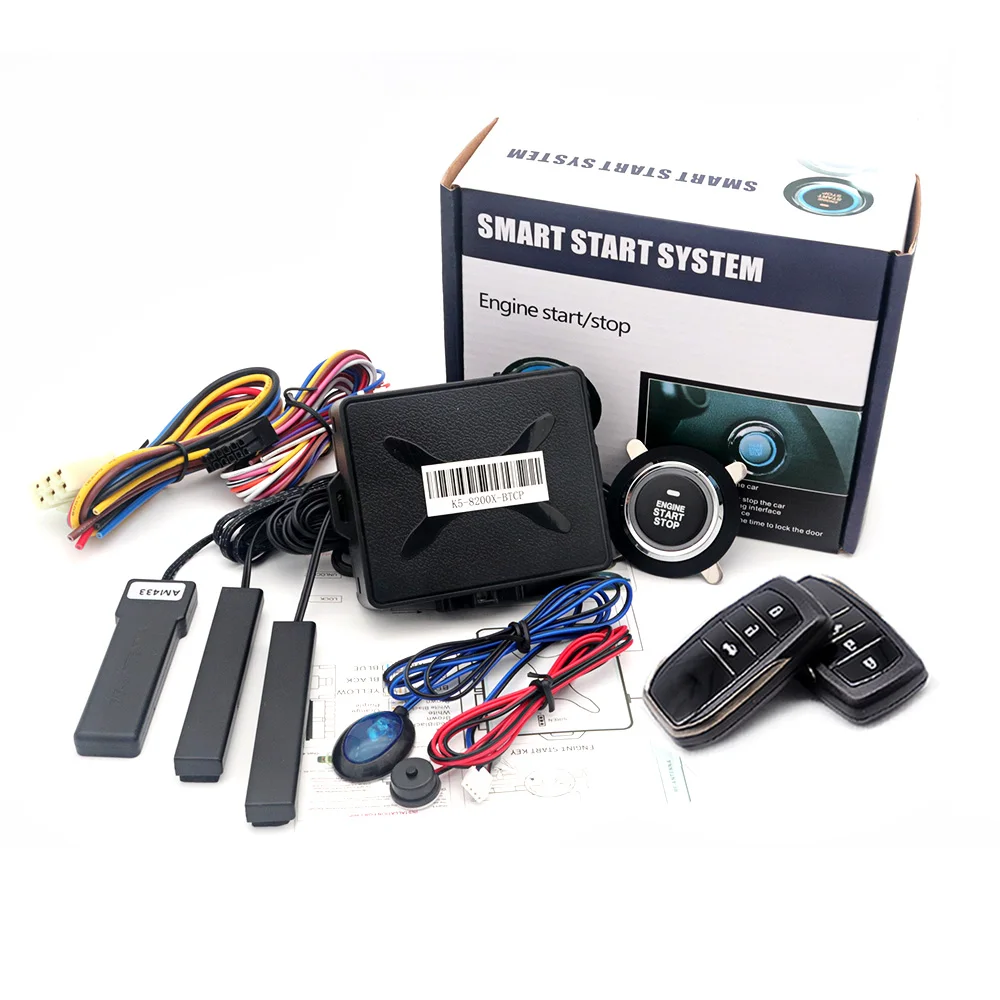

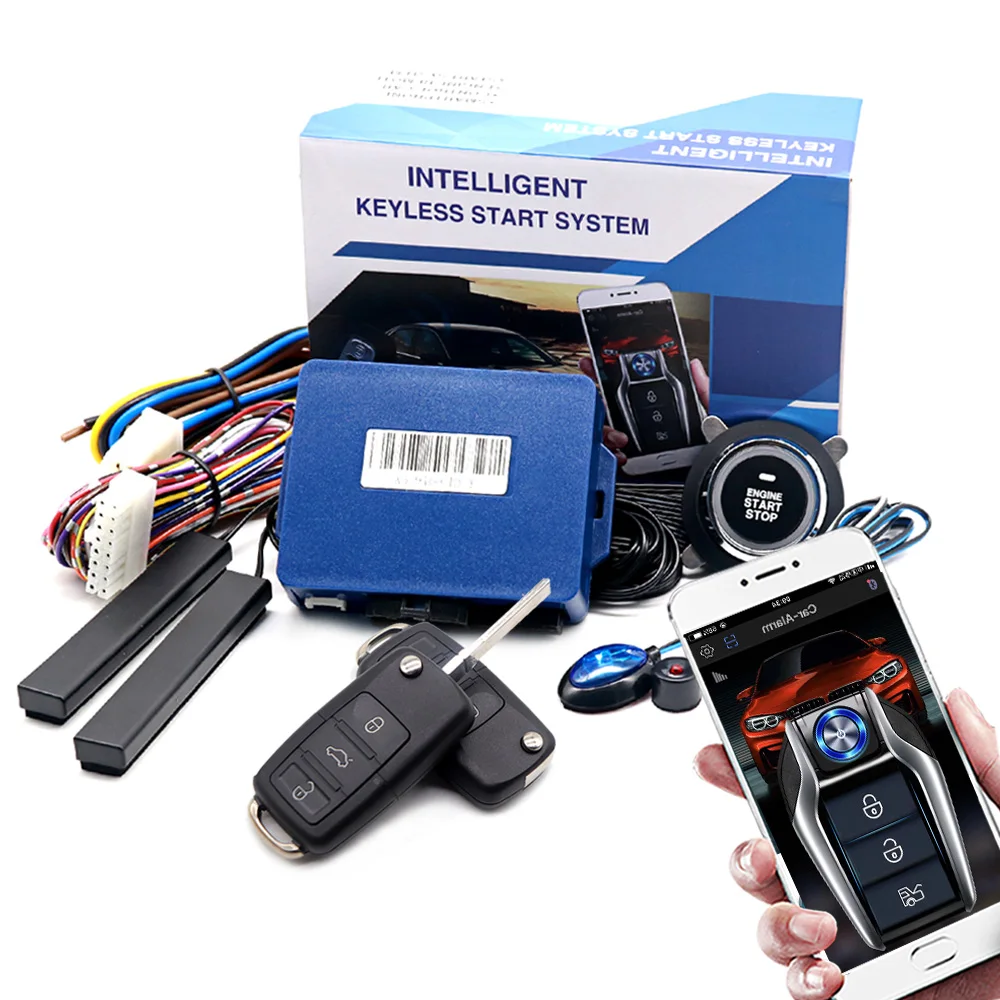

Packing List:
2* Intelligent remote keys
1* Ignition and alarm module
2* Install wiring harness
1* Start-stop button
2* PKE Induction Antenna
1*high-frequency antenna
1* Emergency reset button
1* The LED light
1* Product manual

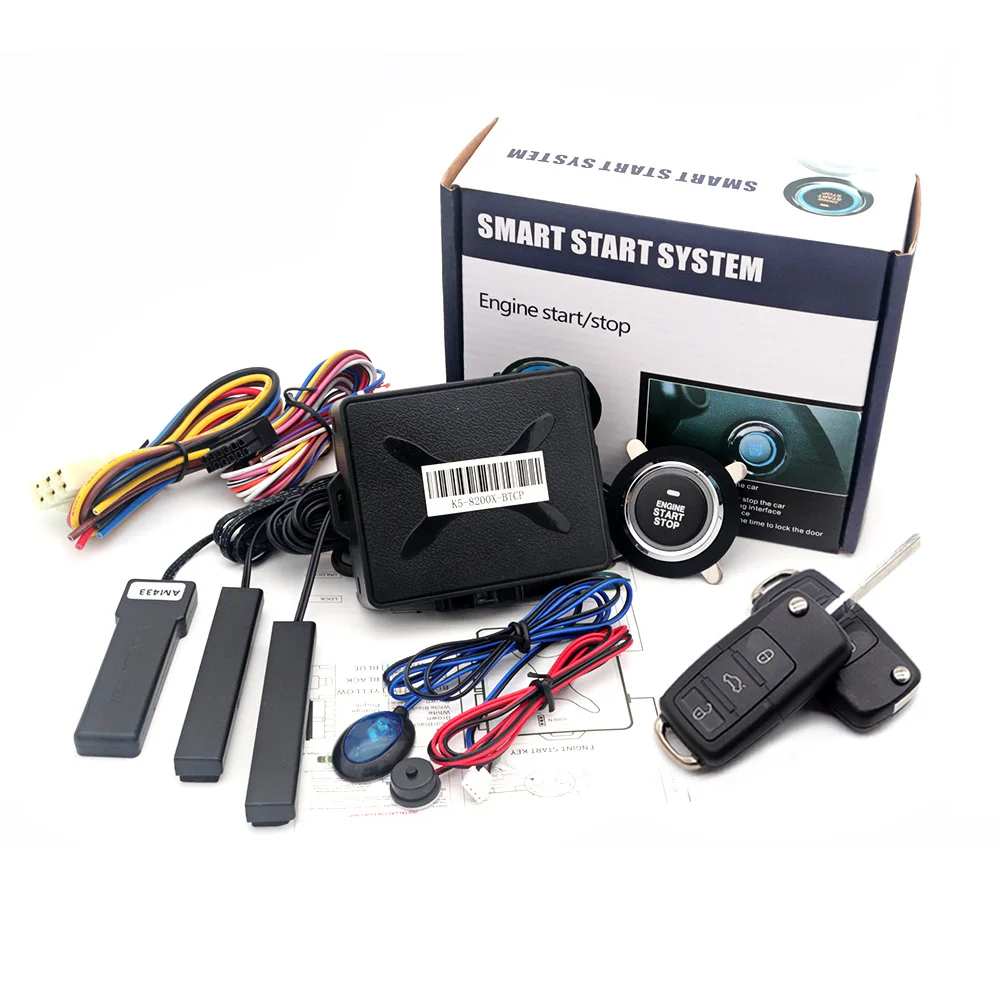

Model K5-8200XBT

Features:
1. lock/unlock/remote start by remote key or APP.
2. Automatic engine lock (the engine cannot be started after locking).
3. Push one button start / stop engine.
4. Remot open back box by key or APP (Requires the car itself to have a controllable circuit).
5. Sound and light alarm or silent anti-theft.
6. PKE keyless comfort entry function, automatically unlock the car 1.5-3 meters away from the car, automatically lock the door 3-5 meters away from the car.
7. PKE keyless entry can be temporarily disabled.
8. Warm up for 3 seconds at starting (for diesel cars).
9. Automatically lock the door by stepping on the foot brake after starting, and automatically unlock when the flame is turned off
10. Blue LED Alarm light prompt
11. Emergency reset.
12. Anti-theft alarm function (Illegal door opening or hit the brakes to alarm).
13. An independent external high-frequency receiving antenna. Compared to the traditional 'small tail' antenna, the remote control with an external antenna has a longer range and is more stable.
14. Using high-quality relays to output control signals, the system is more stable and reliable.

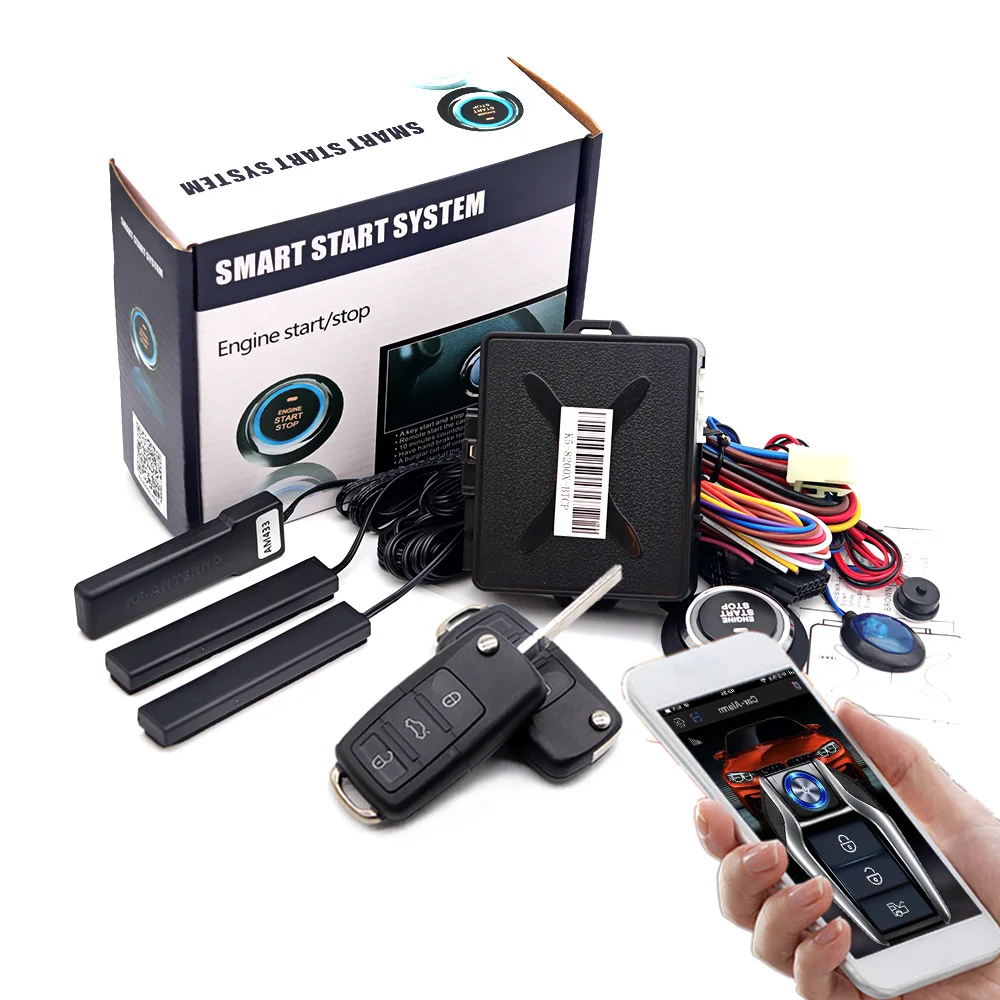

Packing List:
2* Intelligent remote keys
1* Ignition and alarm module
2* Install wiring harness
1* Start-stop button
2* PKE Induction Antenna
1*high-frequency antenna
1* Emergency reset button
1* The LED light
1* Product manual

Q&A about the product:

1. Is this system plug-and-play? Does installing this system require damaging the car's own wiring?

This set is a universal type, and it can fit most 12V cars. Installing this system does not require cutting the car's original cables and will not damage the car itself. You only need to connect the cables of this set to the corresponding cables of the car.

2. What is the control distance of the remote control and the control distance of the Bluetooth app respectively?

Our remote control uses the shared frequency band of 433MHz, which can be used by everyone on the shared frequency. This means that the control distance of the remote will be affected by your current environment. If there are many devices using the shared frequency around, the remote's control distance may be reduced to only 5 meters, but under normal circumstances, the remote control distance is about 30 meters.
The control distance for the Bluetooth app is similar. Under normal circumstances, it is about 20 meters, but it is affected by the phone itself. The Bluetooth range may vary with different phones; some may reach 40 meters, while others may only have 5 meters.

3. This system needs to bypass the car's own anti-theft mechanism in order to use the push-button start, so is installing this system safe and reliable? Will someone steal my car?

Although this system bypasses the car's own anti-theft feature and uses a button to start the engine, it is very safe because the system itself has a very complete anti-theft function. Without a key or unlocking the system through the app, no one can use the button to start the engine, including the car owner!

4. How to use the app?

First, scan the QR code to download the app. After installation, open the app, tap the Bluetooth icon in the top left corner, then tap Bluetooth pairing. Enter the default password 123456. Once pairing is complete, return to the main screen, tap the settings icon in the top right corner, then tap Match Remote. Press the lock and unlock buttons on the remote simultaneously to complete the pairing.

First, scan the code to download the APP, (choose Android or Apple), then turn on the Bluetooth of your mobile phone, click the APP "learning key", and then press the "lock" and "unlock" of the remote control at the same time, it is easy to complete.

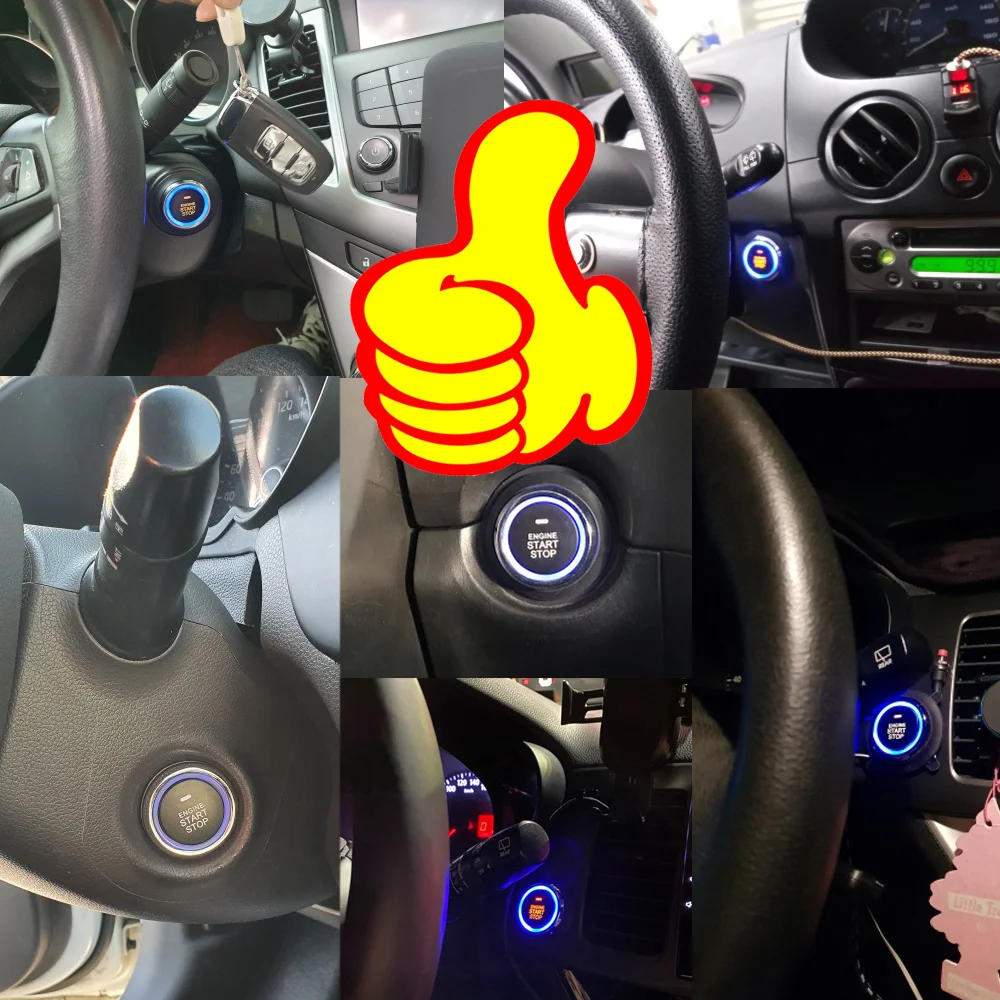

If you want to put the start / stop button in another location, please click the link below to purchase the punch button set

Matters Needing Attention 1:

If your car has an anti-theft chip, and the chip induction coil at the ignition switch cannot be removed, you may need an additional small box to guide the chip signal.

Matters Needing Attention 2:

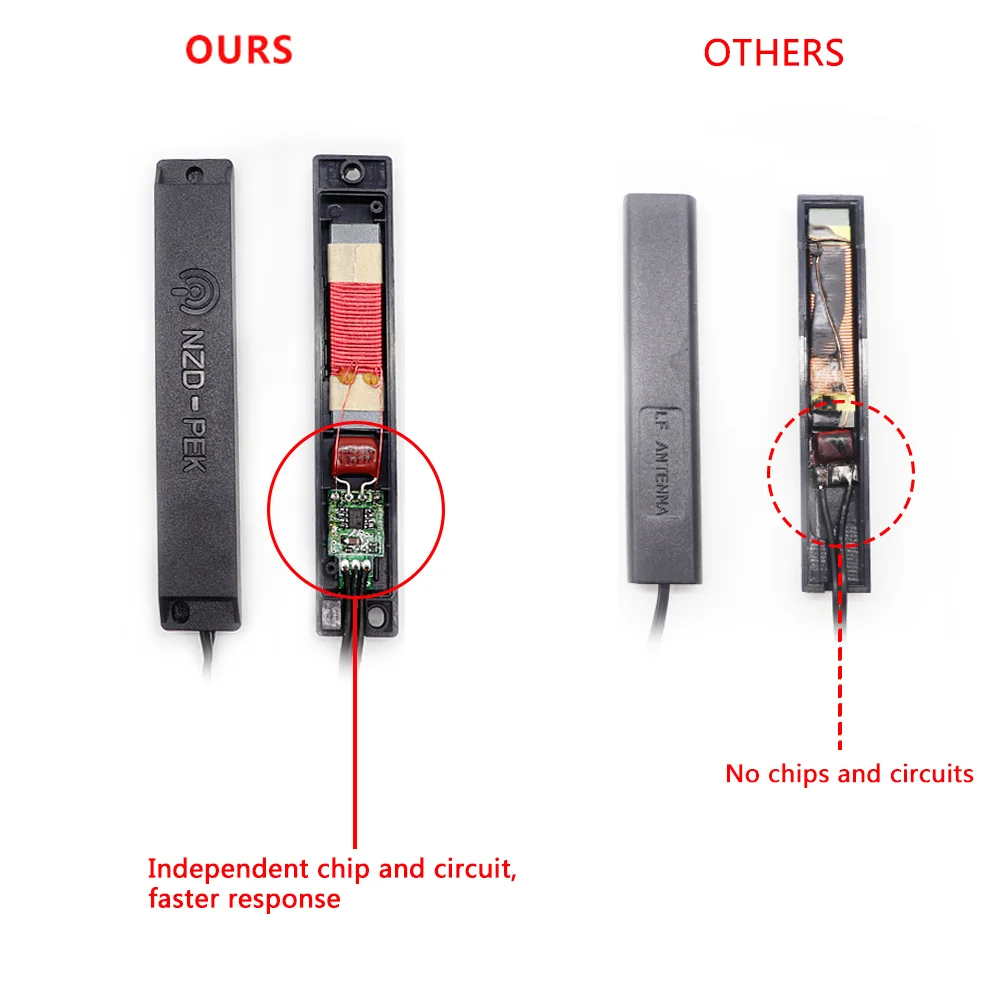

If you order a model with PKE keyless entry.Please refer to the picture to place the PKE antenna. Be careful not to stick the PKE antenna to metal, because the metal will absorb electromagnetic signals, which will make the induction automatic unlocking insensitive.

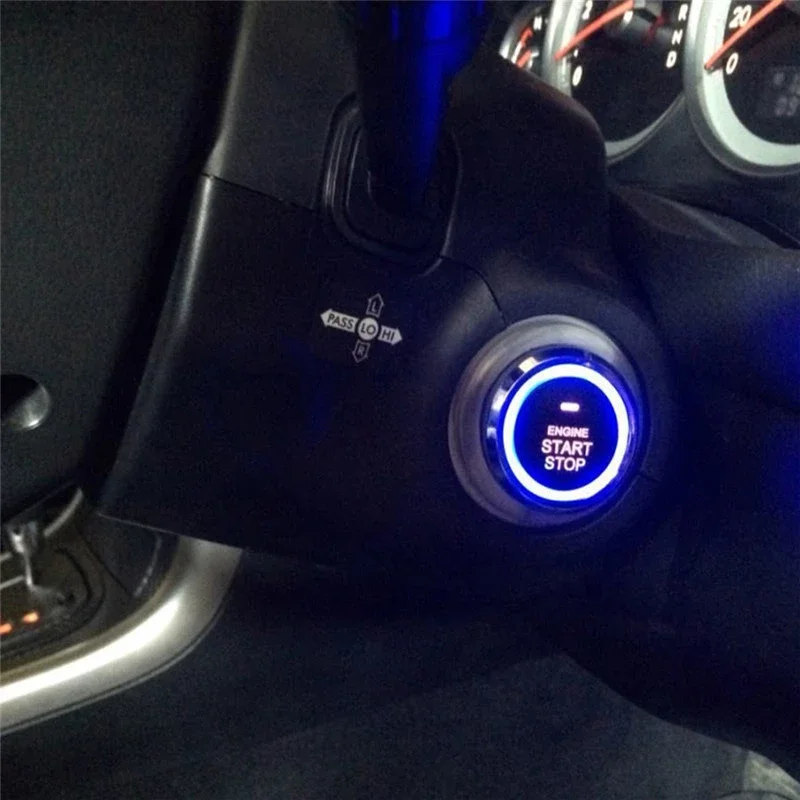

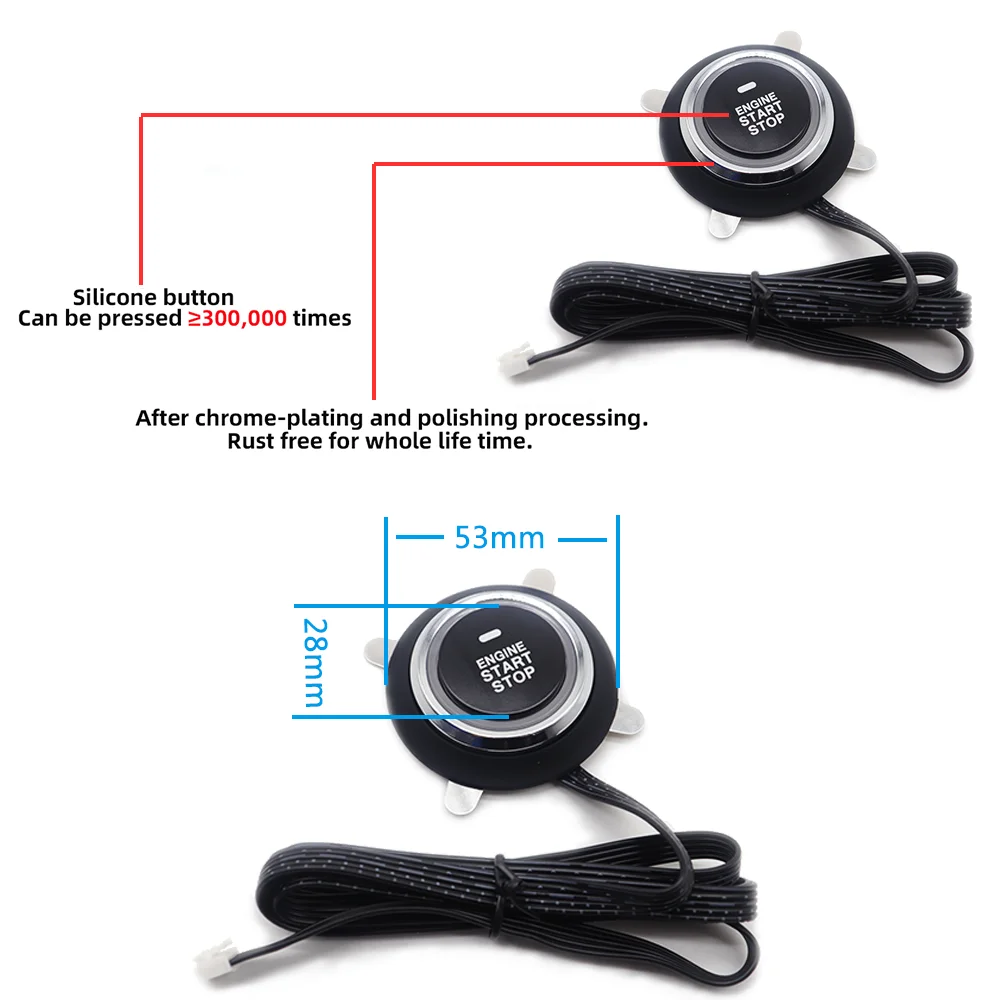

Push button to start /stop engine:

Turn On: step on the brake, press the start-stop button once, the engine turn on; do not step on the brake, hold down the button for 5 seconds to turn on the engine. If you press the button forever, the engine will start forever.

Turn Off: step on the brake, press the button once, the engine will turn off; do not step on the brake, hold down the button for 5 seconds to turn off the engine.
