SPECIFICATIONS



Brand Name: BSIDE



Certification: CE,FCC,RoHS

High-concerned chemical: none

Model Number: BSIDE HX1





BSIDE Handheld Thermal Imaging Camera-HX1 240×240 Resolution -20~550C 15 Color Palette PC Analysis Software Industrial Tester

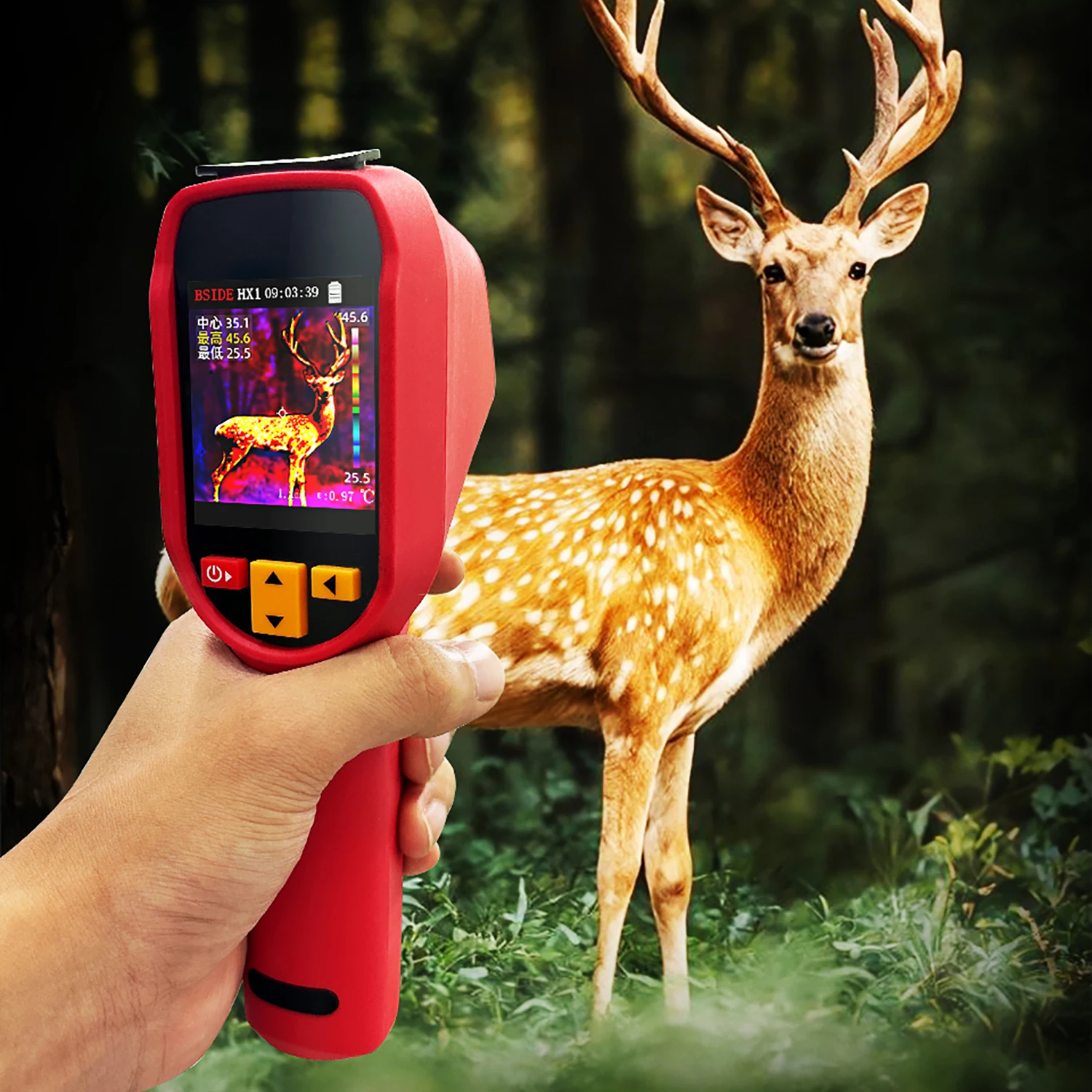

BSIDE HX1 is a brand new handheld thermal imaging camera that combines temperature measurement and imaging.

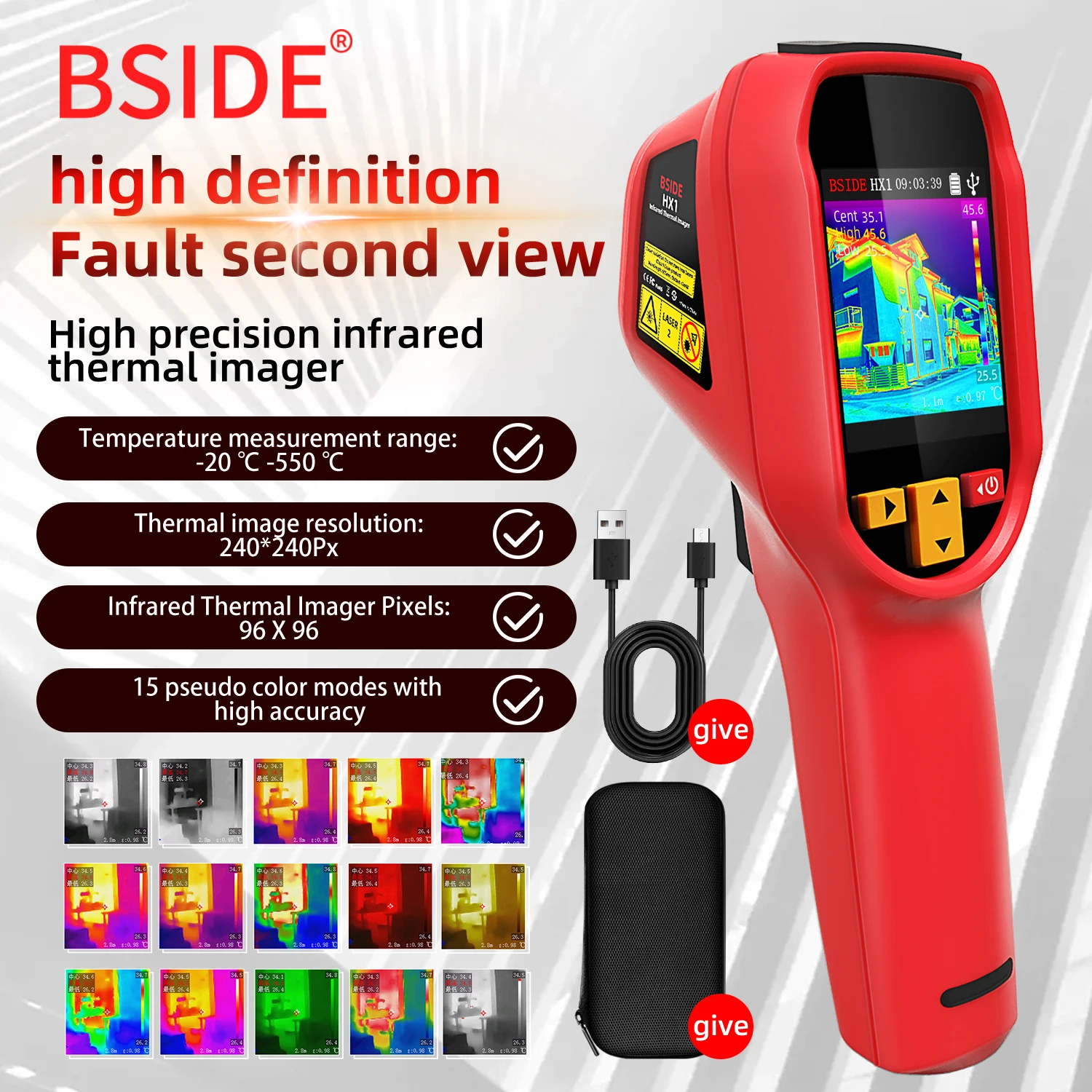

Thermal image resolution: 240*240Px, Infrared Thermal Imager Pixels: 96×96(25Hz Frame rate), Uses cutting-edge image stabilization technology，2.4-inch screen，15 pseudo color modes withhigh accuracy High and low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

The body adopts double injection molding process Durable.

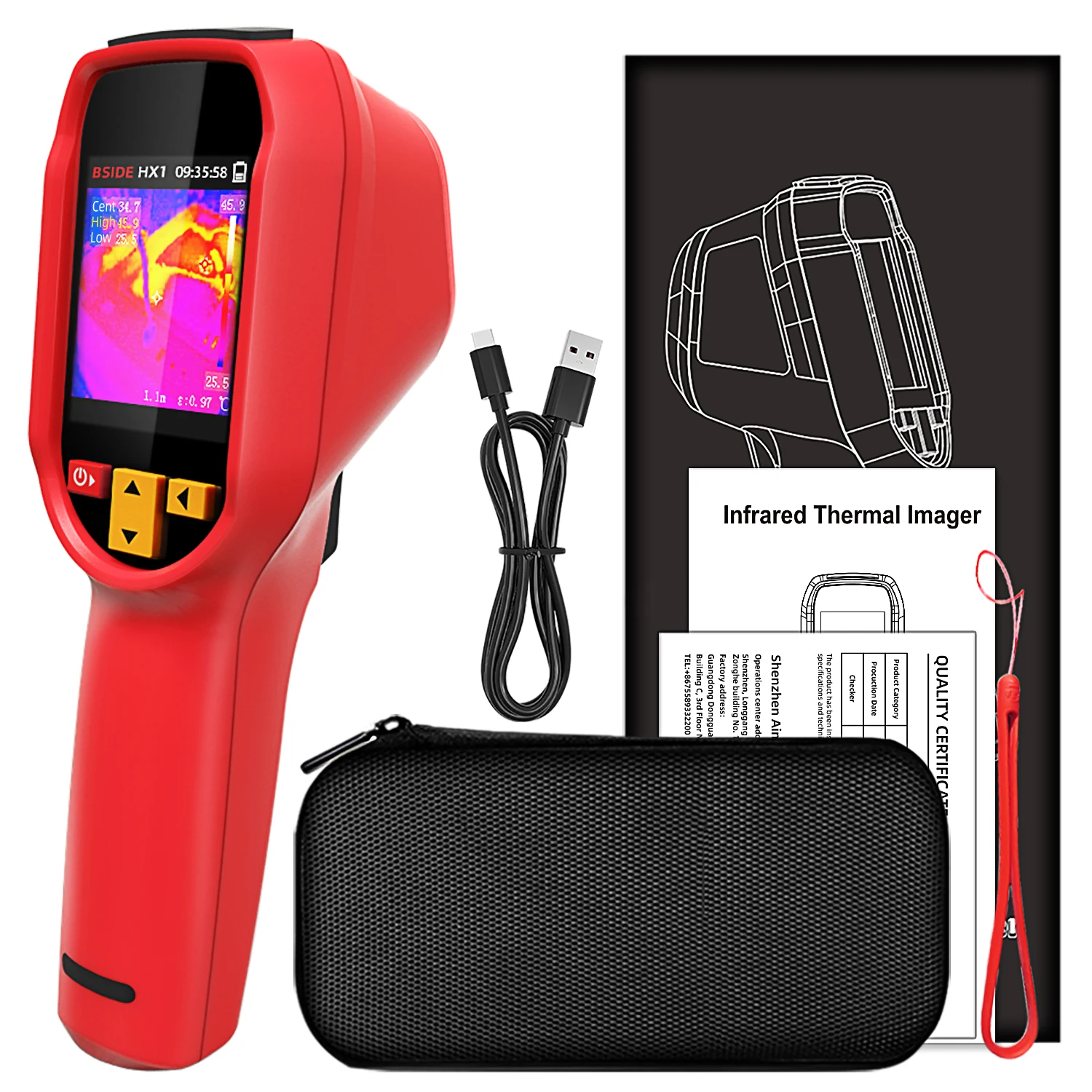

Also comes with a high-quality EVA handbag.

Main features of HX1/HX3

Resolution: 240 × 240

Infrared Thermal Imager Pixels: 96 x 96.

Screen: 2.4 inch LCD screen

Frame rate: 25Hz

15 pseudo color modes with

Temperature measurement range: -20 °C~550 °C

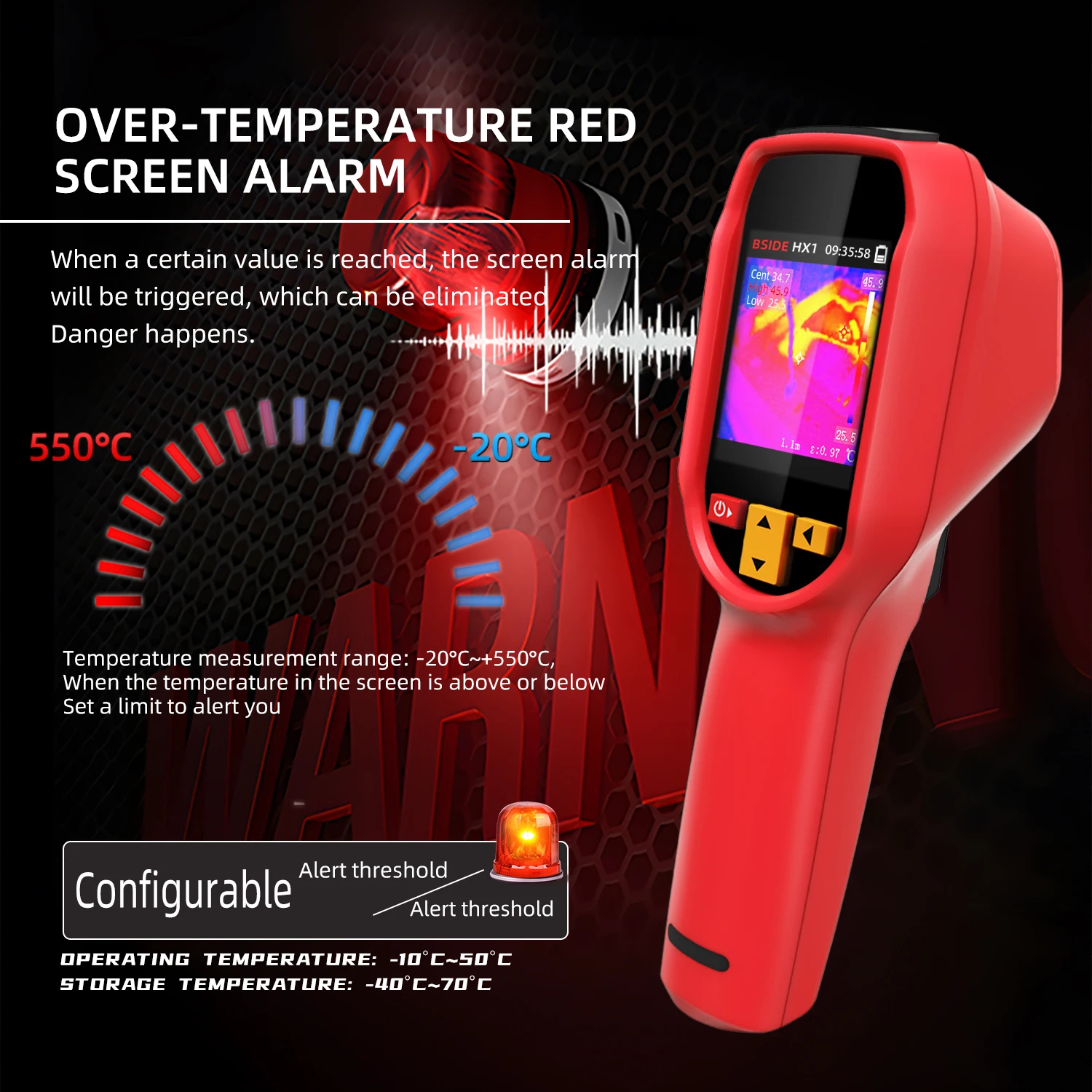

High and low temperature alarms: image, buzz, LED flashing

Laser Indicator/LED Illumination Laser Indicator/LED Illumination

Emissivity: 0.01~1

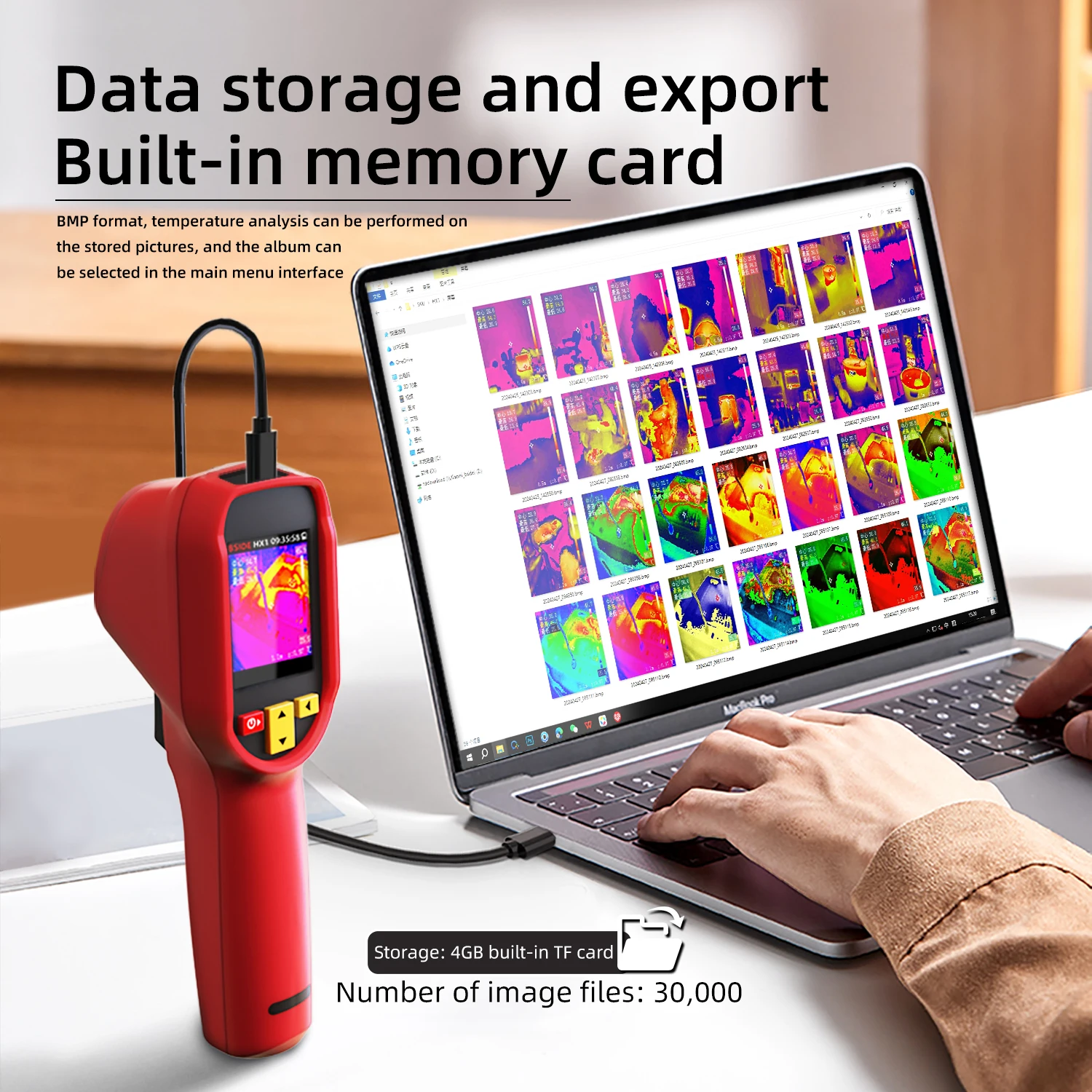

Storage: 4GB built-in TF card

Adjustable emissivity

Power supply: 2500mA lithium battery

Three-proof design: IP54/1.5m anti-drop

The bottom design has screw holes for use with a tripod

Product model:

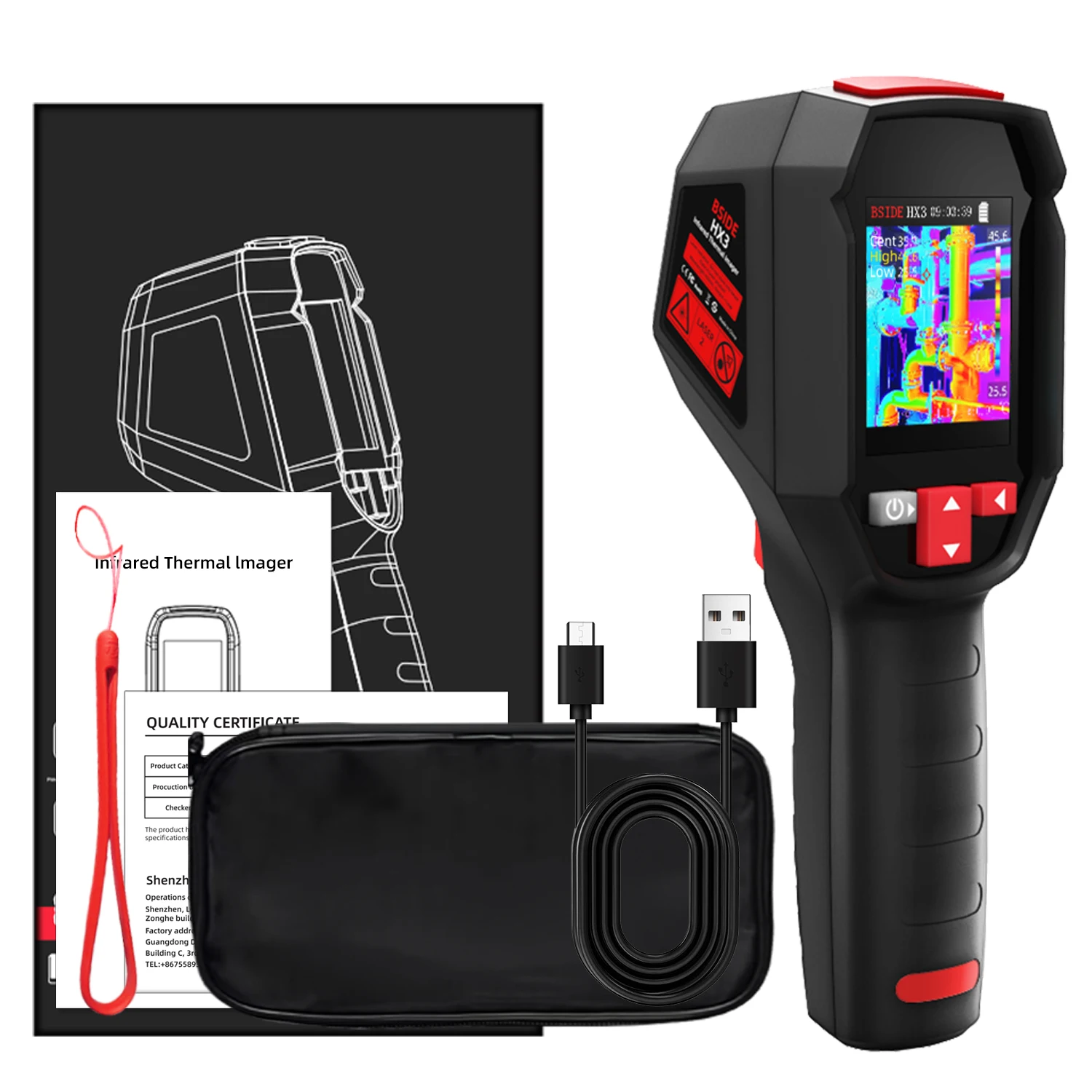

Product Model: BSIDE HX1/HX3

Sensor type: Vanadium oxide microbolometer

Resolution: 240 x 240

Infrared Thermal Imager Pixels: 96 x 96.

Response band: 8-14 μ m

Frame rate: 25Hz

NETD：< 60mK @ 25 °C

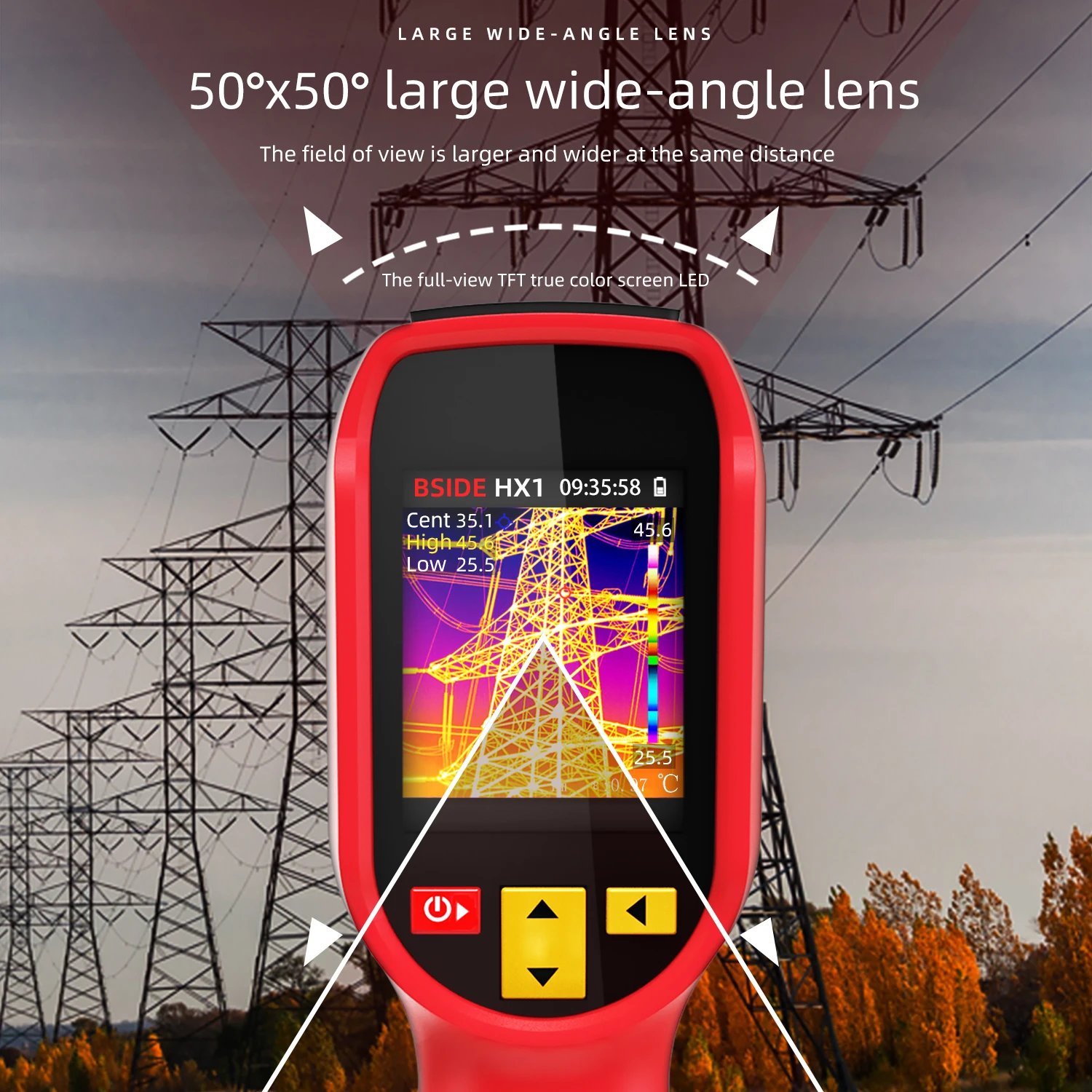

Field of view (FOV): 50°H×50°V/72.1°D

Spatial resolution (IFOV): 8.89mrad

Focal length of imaging lens: 1.35mm

Temperature measurement focal length: 0.3m~3m adjustable

Temperature measurement range: -20 °C to 550 °C

Temperature accuracy: ± 2 °C/± 2% (maximum reading)

Temperature measurement unit: °C/°F/Kelvin

Temperature measurement resolution: 0.1°C

Emissivity: 0.01~1.0 adjustable

Temperature measurement display: central point temperature measurement, high and low temperature tracking

Color Palette: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Dark Sepia, Color 1, Color 2, Iron Red 1, Iron Red 2, Fire and Ice, Rain, Green Hot, Red Hot, Dark Blue

Display: 2.4 inch TFT LCD screen

Display resolution: 320 x 240px

Buttons: Power button, Up button, Down button, Back button, Trigger button

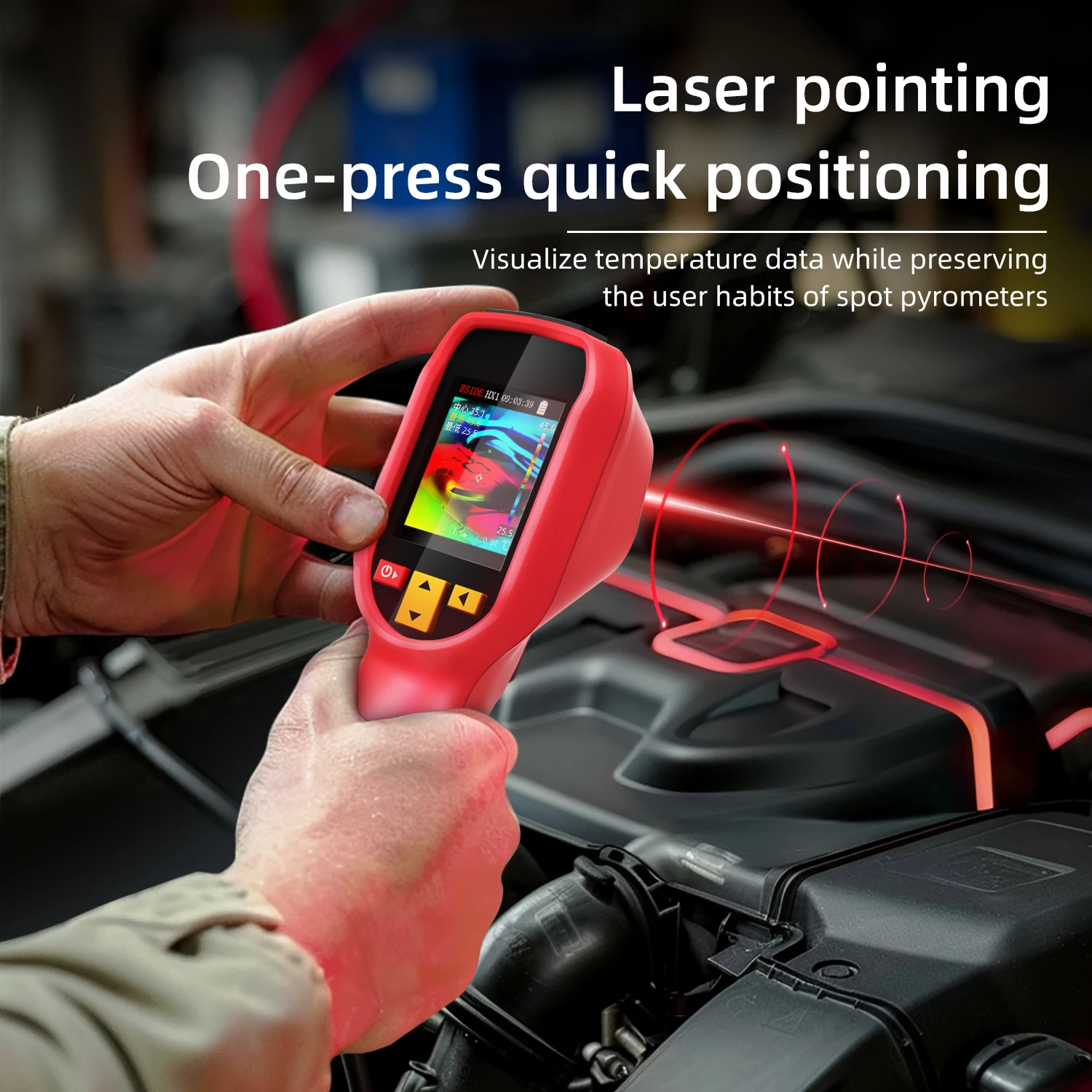

Laser indication: Yes

Storage: Built-in memory card

Number of image files: 30,000

Image format: BPM

Focusing method: Autofocus

High and low temperature tracking: √

Temperature alarm: Screen font color alarm

Battery type: Rechargeable lithium battery (3.7V/2500mAh)

Charging system: Type-C direct charging

Data interface: Type-C USB

Illumination/Laser Instruction: √

Protection Rating/Fall Protection Rating: IP54/1.5m

Dimensions (L x W x H): 193.4 x 59.4 x 77.4 mm
